Description：

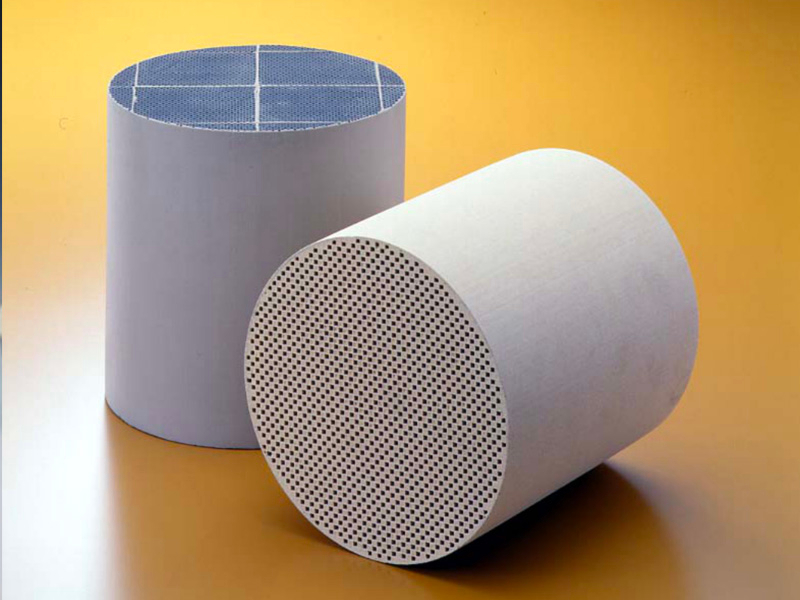

Cordierite and silicon carbide DPF adopts cordierite ceramic or silicon carbide as raw material, and the wall-flow ceramic monolith filters are produced through the honeycomb extrusion principle. All channels are closed in one end, to produce a chessboard like patter. The DPF can filter PM amount over 95%.
Features:
Excellent PM load and filter performance
Active regeneration capacity
Thin catalyst coatings
High durability
Long service life
Applications：
Bus catalytic converter
Truck catalytic converter
Marine purification system
Generator purification system
Industrial plant smoke and dust removal
Technical Parameters
Material | Type | Specification | cells | Liter |
Cordierite | Φ118 | Φ118*152 | 200 cpi | 1.66 L |
Φ118*203 | 200 cpi | 2.22 L | ||
Φ127 | Φ127*200 | 200 cpi | 2.53 L | |
Φ144 | Φ144*152 | 200 cpi | 2.47 L | |
Φ144*200 | 200 cpi | 3.26 L | ||
Φ144*203 | 200 cpi | 3.30 L | ||
Φ144*210 | 200 cpi | 3.42 L | ||
Φ144*250 | 200 cpi | 4.07 L | ||
Φ144*254 | 200 cpi | 4.13 L | ||
Φ157 | Φ157*100 | 200 cpi | 1.94 L | |
Φ170 | Φ170*95 | 200 cpi | 2.16 L | |
Φ170*152 | 200 cpi | 3.45 L | ||
Φ190 | Φ190*100 | 200 cpi | 2.83 L | |
Φ190*152 | 200 cpi | 4.31 L | ||
Φ190*170 | 200 cpi | 4.82 L | ||
Φ190*200 | 200 cpi | 5.67 L | ||
Φ230 | Φ230*152 | 200 cpi | 6.30 L | |
Φ267 | Φ267*152 | 100 cpi | 8.51 L | |
Φ267*215 | 100 cpi | 12.03 L | ||
Φ267*279 | 100 cpi | 15.61 L | ||
Φ267*305 | 200 cpi | 17.07 L | ||
Φ267*330 | 200 cpi | 18.47 L | ||
Φ286 | Φ286*215 | 200 cpi | 13.81 L | |
Silicon Carbide | Ф110 | Ф110*200 | 200 cpi | 1.90 L |
Ф135 | Ф135*254 | 200 cpi | 3.63 L | |
Ф144 | Ф144*152 | 200 cpi | 2.47 L | |
Ф144*200 | 200 cpi | 3.26 L | ||
Ф144*203 | 200 cpi | 3.30 L | ||
Ф170 | Ф170*254 | 200 cpi | 5.76 L | |
Ф190 | Ф190*152 | 200 cpi | 4.31 L | |
Ф190*203 | 200 cpi | 5.76 L | ||
Ф190*254 | 200 cpi | 7.20 L | ||
Ф190*305 | 200 cpi | 8.60 L | ||
Ф228 | Ф228*254 | 200 cpi | 10.37 L | |
Ф228*305 | 200 cpi | 12.40 L | ||
Ф267 | Ф267*254 | 200 cpi | 14.20 L | |
Ф267*279 | 200 cpi | 15.61 L | ||
Ф267*305 | 200 cpi | 17.07 L | ||
Ф286 | Ф286*152 | 200 cpi | 9.76 L | |
Ф286*305 | 200 cpi | 19.58 L | ||
Ф305 | Ф305*305 | 70 cpi | 22.27 L |
